Shepherd Hut - Joey 360cm

The smallest Shepherd Hut / Gypsy wagon in the range, this measures in total 2.40 x 3.60m with a single door which can be placed to one side or in either end as required. A compact and useful garden building full of character. Optional metal wheels, axles and H frame. Ample room inside for a number of applications.

Most of our customers will add to this structure, lining it, insulating and producing a Garden office, Summerhouse and more.

Use 35mm - 45mm Celotex (or similar) insulation in the walls and rockwool in the roof to create an office or accomodation. Line very cheaply with pine face plywood in the roof or 8mm pine cladding for the walls. Please also see the reviews as other customers who sell these as a business fully made also have some useful advice.

We also offer Insulation prep kits- These kits will contain the wood cladding needed to twin skin your Shepherds Huts. Please Note: That the insulation is not included in these kits, insulation board will have to be sourced separately.

Our Shepherd Hut 360 measures a compact 2.40, x 3.60m overall. It is manufactured from 19mm tongue and grooved timber on a timber frame and metal chassis. Access is gained into the side double doors via substantial steps.

Supplied untreated, for finishing by yourself in a traditional opaque or solid colour.

The Shepherd Hut 360 features as standard:

• 19mm Tongue and Groove Cladding.

• Floor and Roof cladding has a rear groove to ensure it does not curl over time.

• Inner laminated and curved trusses

• Two double glazed windows- One of which is opening.

• Half glazed door.

• Timber Subframe of a very heavy duty construction.

• Access steps.

• Single door.

• High quality window and door fittings.

• Torx screws as standard including torx bits.

• All Fittings, screws, components and instruction manual.

• ALL is cut to size and is extremely precise with little or no tolerance.

• This product is actually hugely over engineered with metal brackets, 90 degree brackets and plates, all of which is unnecessary in the UK market but does display the massive quality you will receive on order as this is designed for Germany and Holland.

• Only for static use and props must be used all the time.

• Door and windows can be placed in any position as required at the point of installation.

Dimensions of the Shepherd Hut 360:

• Overall Dimensions: 2.40 x 3.91m

• Wall Dimensions: 2.40 x 3.64m

• Ridge Height: 3.26m - (Height with wheels on)

• Eaves Height: 1.98m

• 19mm cladding - Untreated Spruce

• 19mm Roof and floor

• Roof overhang to the side: +-5cm

• Roof overhang front: +-16cm

• Roof overhang rear: +-16cm

• Center of supporting pins - 1.824 cm x 1.614cm

• Diameter of wheels: +-650mm

• Height from Chassis to centre of the spindle of the wheels: +-325mm

• Frame Depth: 45mm

Optional Extras:

• Standard roofing felt.

• Substantial painted Metal wheels, axles and supports

• Substantial Adjustable support legs for level positioning.

• Steel axles and frames are heavily bolted to the timber subframe

• Internal partition wall with door for Shepherd Hut 360 - 138cm x 198cm

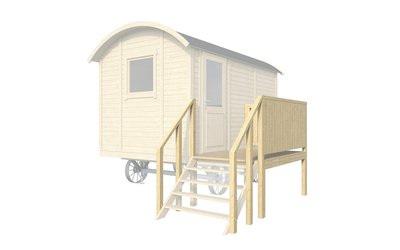

• Deluxe stairs for Shepherd Hut with side entrance - 287cm x 134cm x 180cm

Notes:

Supplied untreated to enable you to finish to the standard you require with insulation, panelling, lining, painting etc.
