Paddy Gypsy Wagon 2.4m x 4.8m

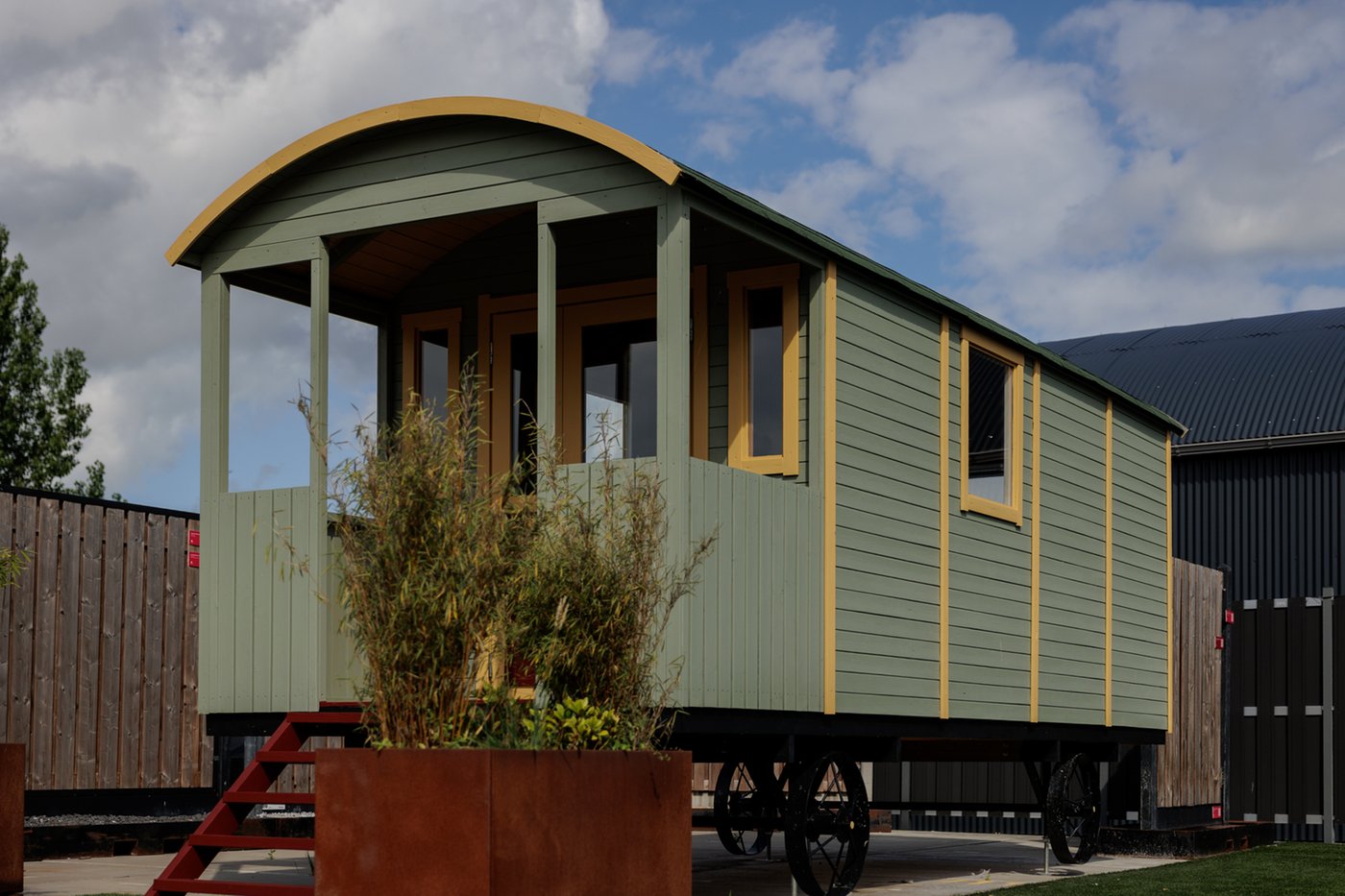

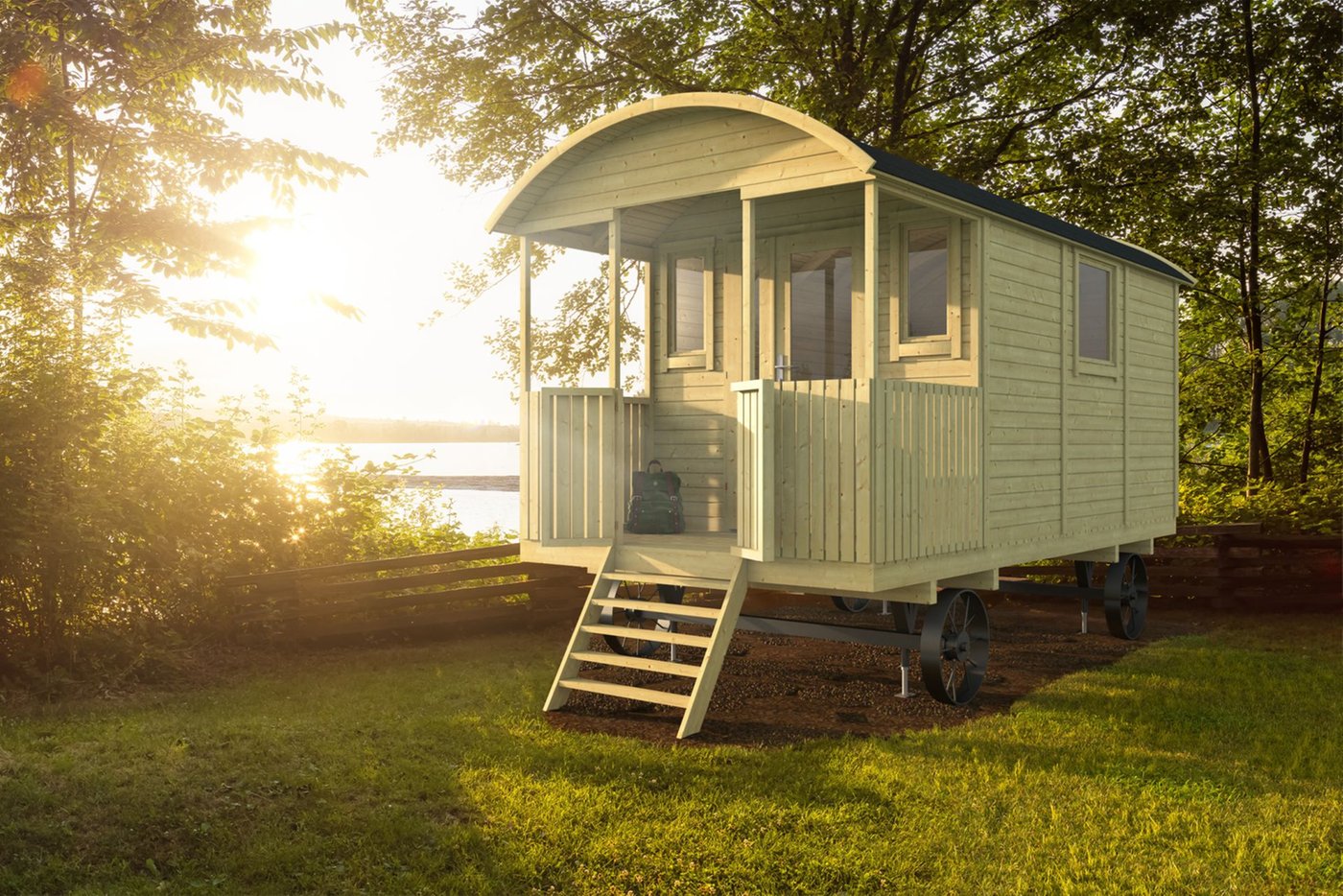

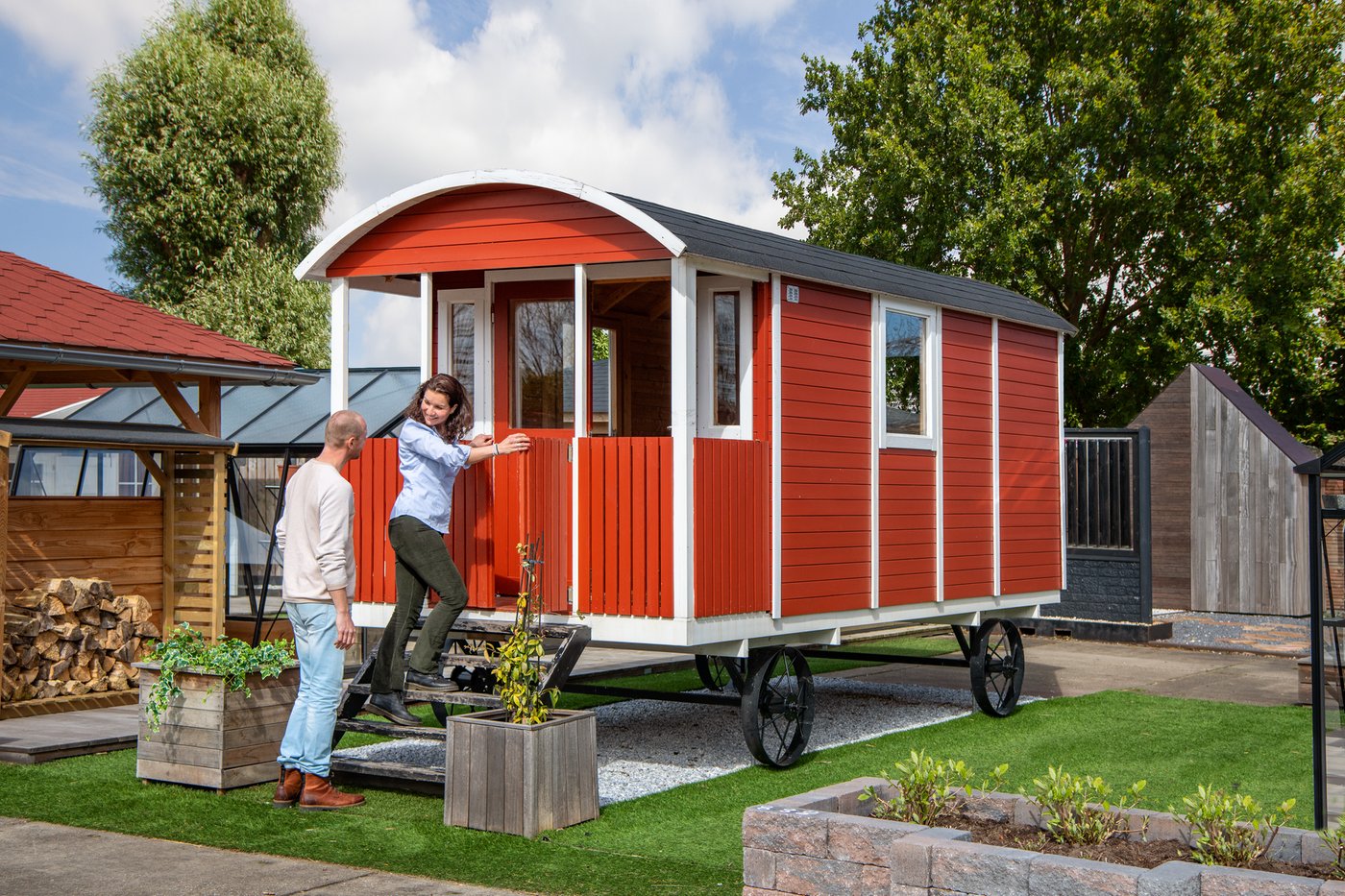

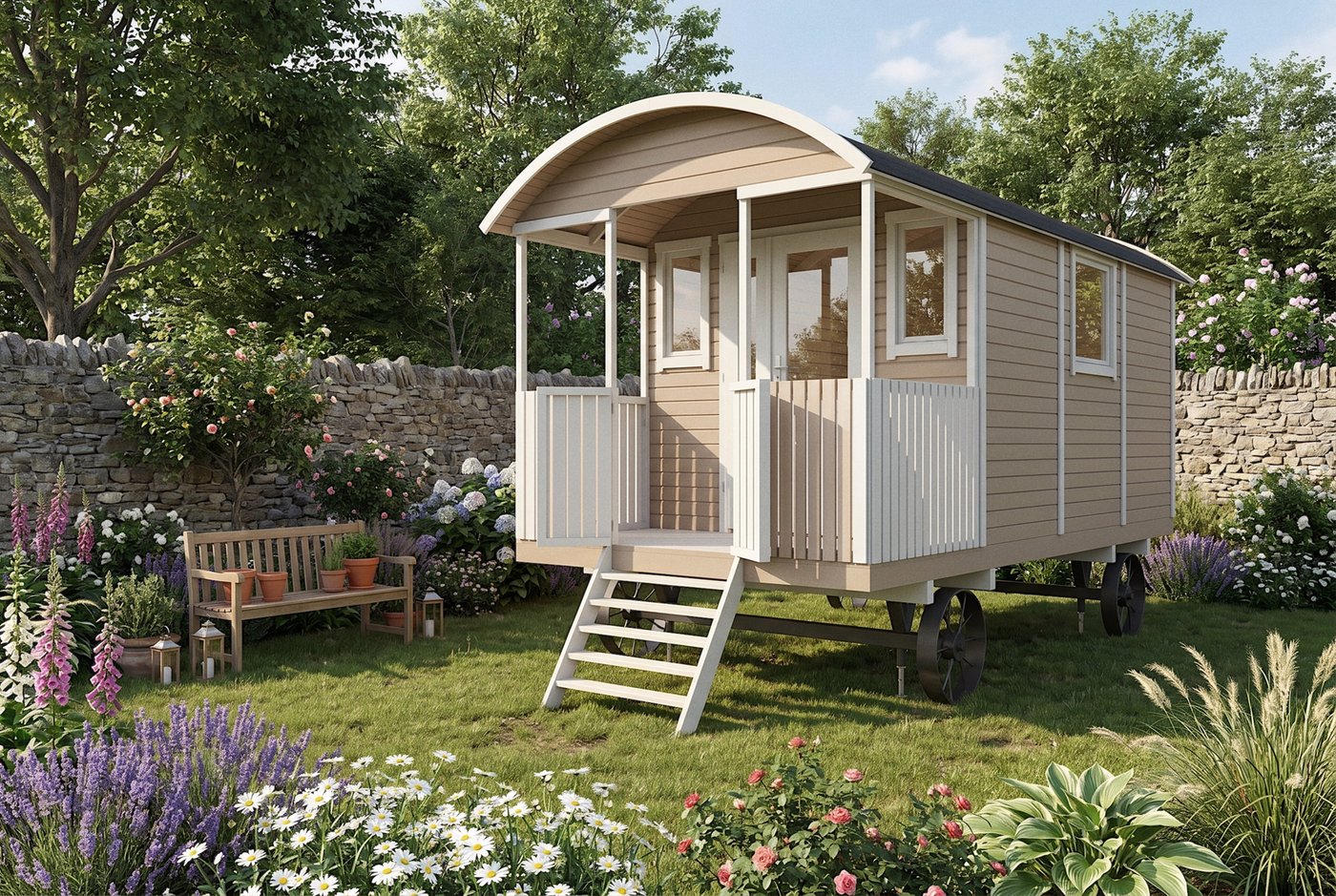

Our Shepherd hut - Paddy Gypsy Wagon measuring in total 2.40m x 4.8m. A really large and imposing garden building. It features metal wheels, axles and H frame. A front porch double gate mounted on two way action sprung hinges and railings with ample room inside for a number of applications.

Most of our customers will add to this structure, lining it, insulating and producing a Garden office, Summerhouse or and more. The pictures really do not do this building justice, it has to be seen to be appreciated.

Also featuring a new panel design allowing you to change the configuration of the windows and doors. Allowing you to move the door to the side panel as well as moving all the windows to one side if you have found the best area to allow light to flood in.

Doors and windows are double glazed.

Use 35mm - 45mm Celotex (or similar) insulation in the walls and rockwool in the roof to create an office or accommodation. Line very cheaply with pine face plywood in the roof or 8mm pine cladding for the walls. Please also see the reviews as other customers who sell these as a business fully made also have some useful advice.

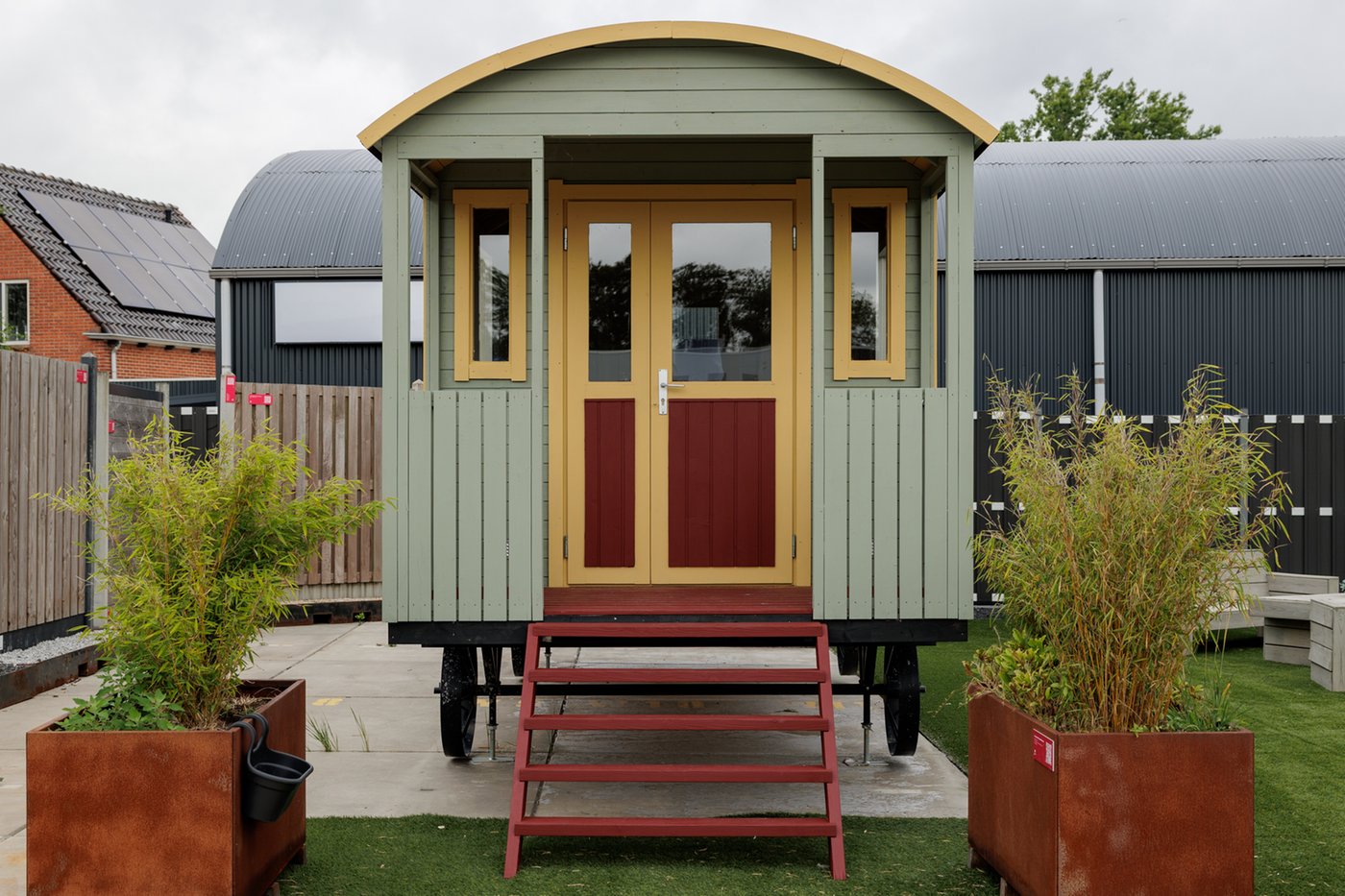

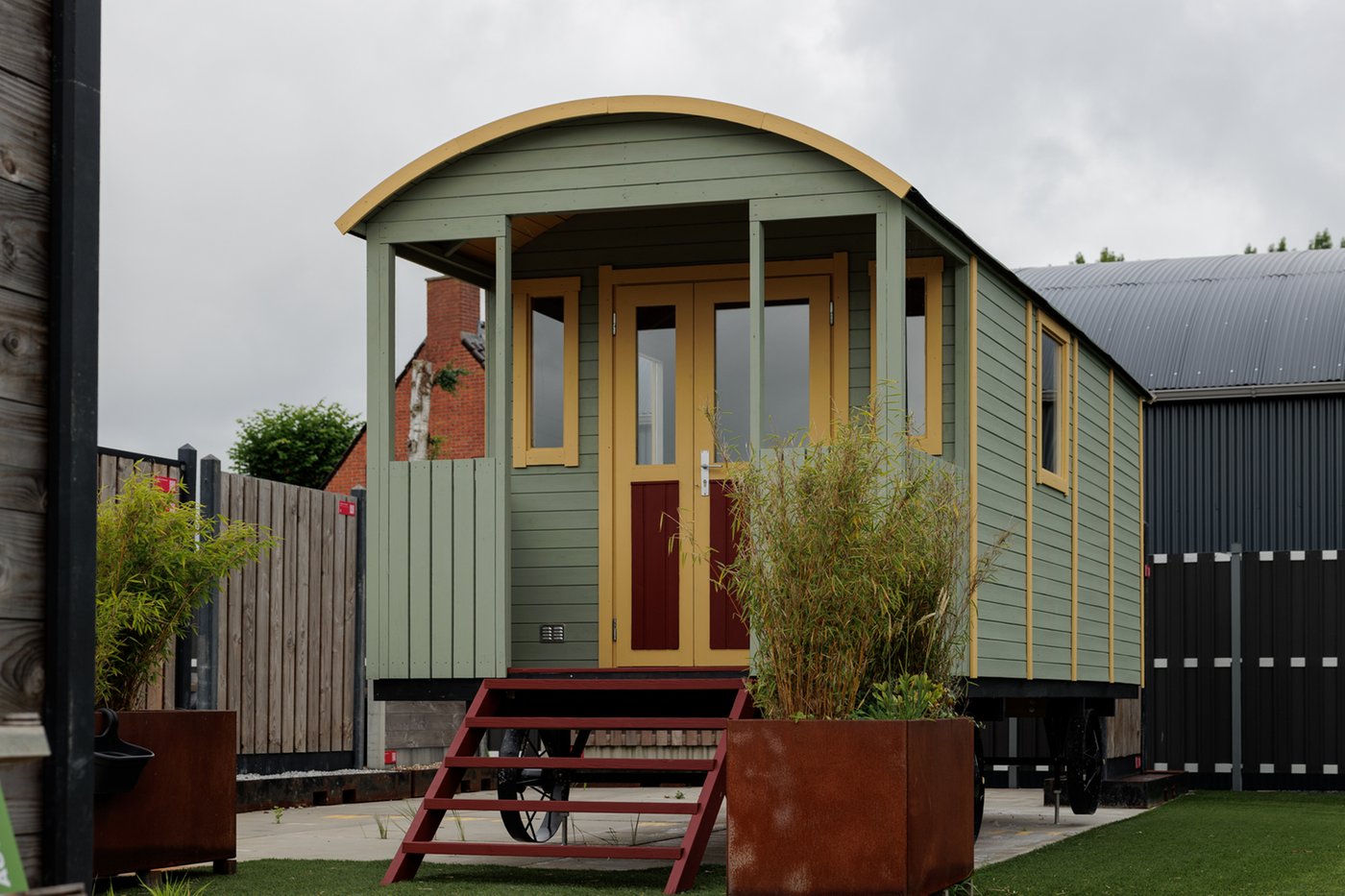

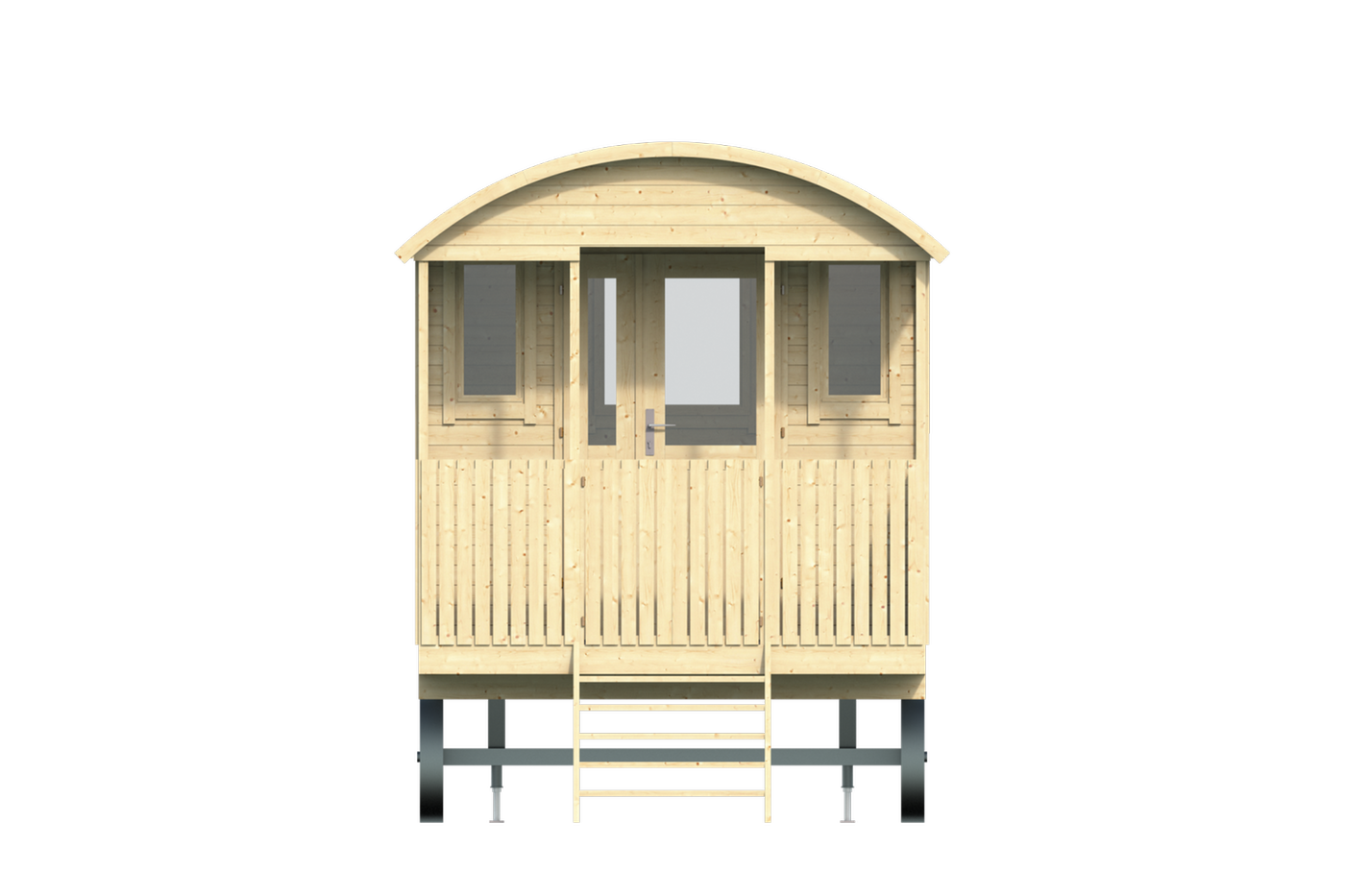

Our Shepherd Hut - Gypsy caravan measures a very large 2.40, x 4.80m overall. It is manufactured from 19mm tongue and grooved timber on a timber frame and metal chassis. A delightful front porch area is accessed via the steps and protected by the railings that surround it.

Supplied untreated, for finishing by yourself in a traditional opaque or solid colour.

The Shepherd Hut - Gypsy Caravan features as standard:

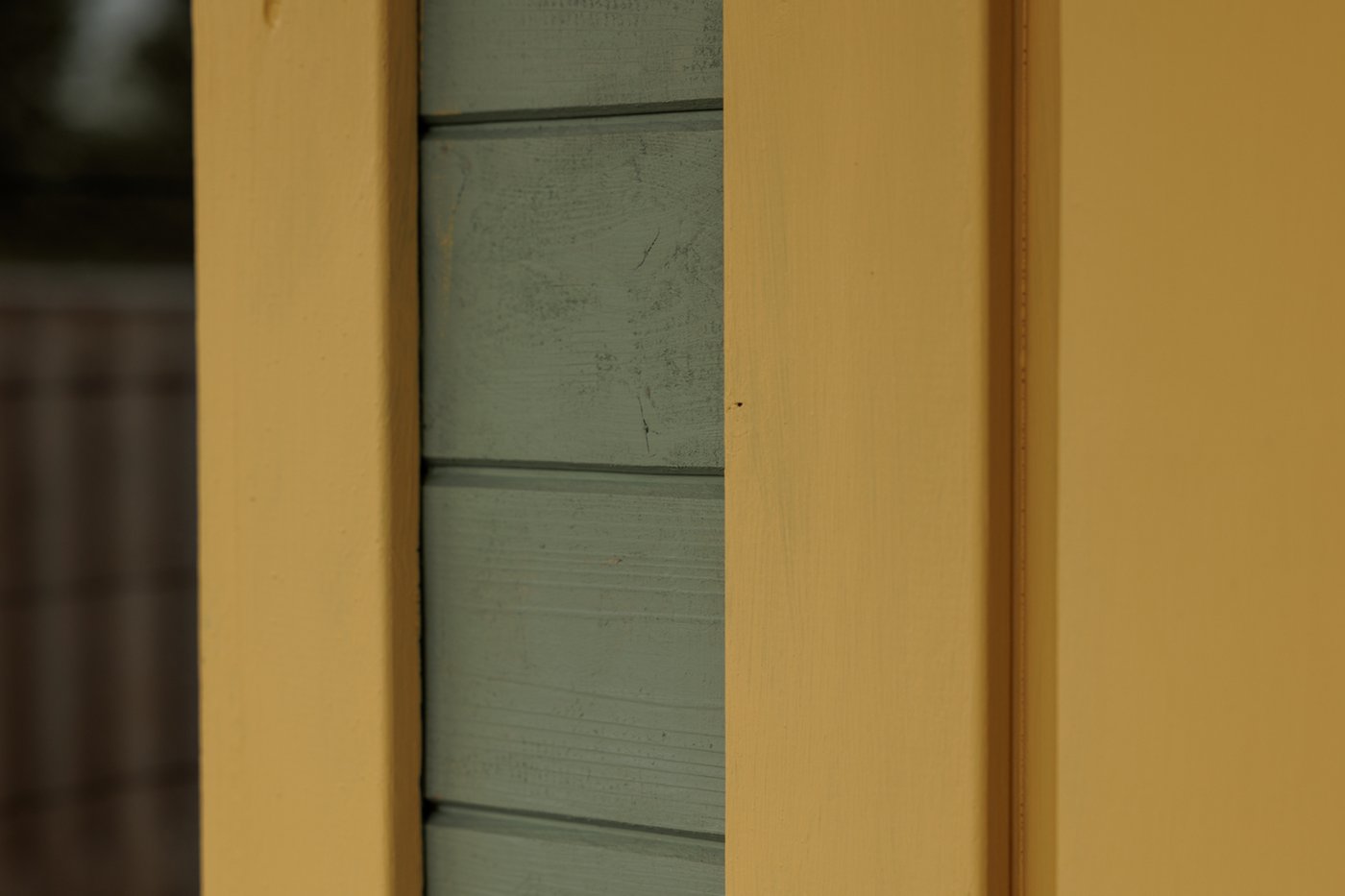

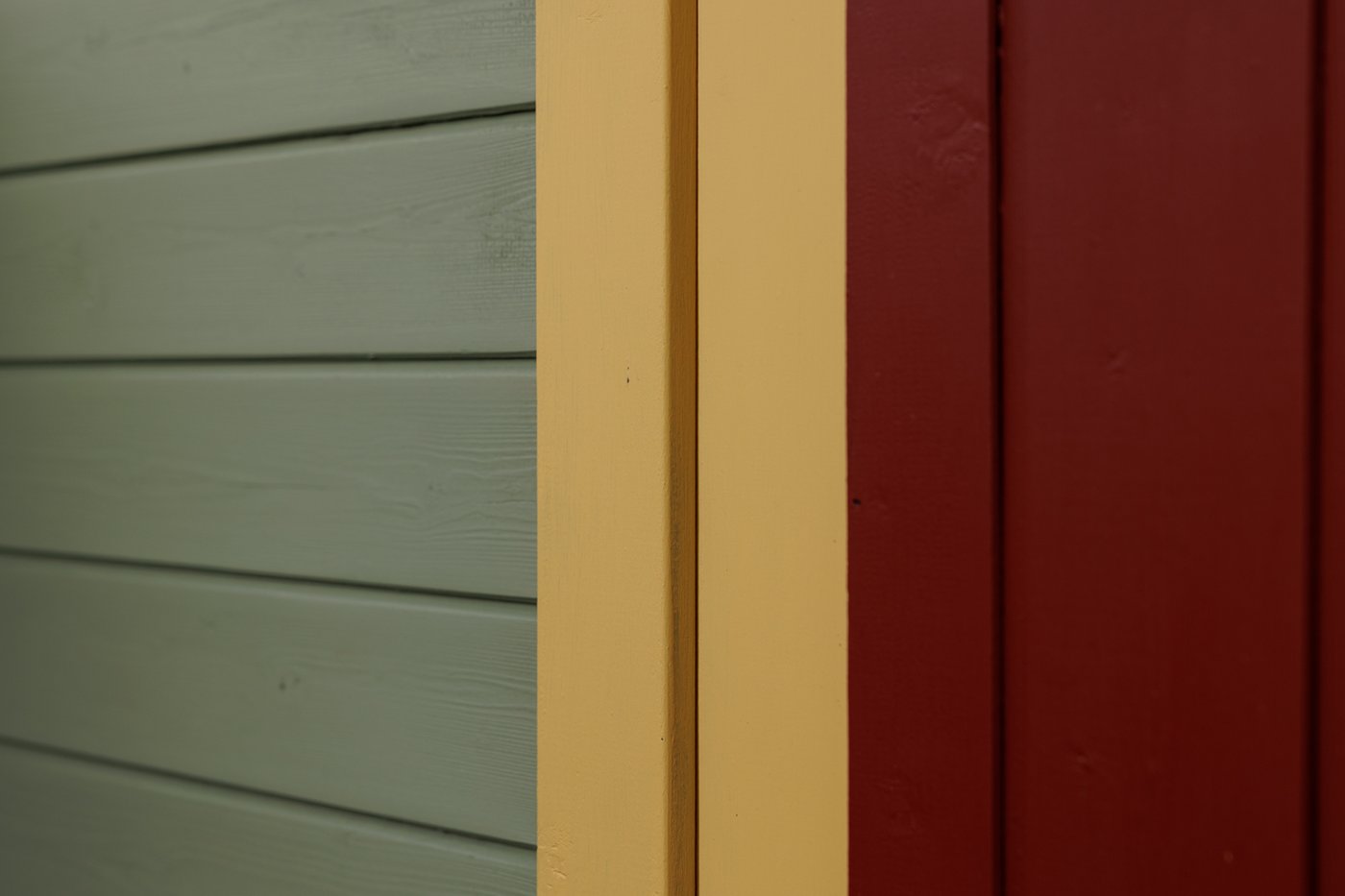

• 19mm Tongue and Groove Cladding.

• Floor and Roof cladding has a rear groove to ensure it does not curl over time.

• Inner laminated and curved trusses

• Full fixed windows to the front

• Double Glazed

• One Fixed side windows - Positions of the side windows can be moved as required.

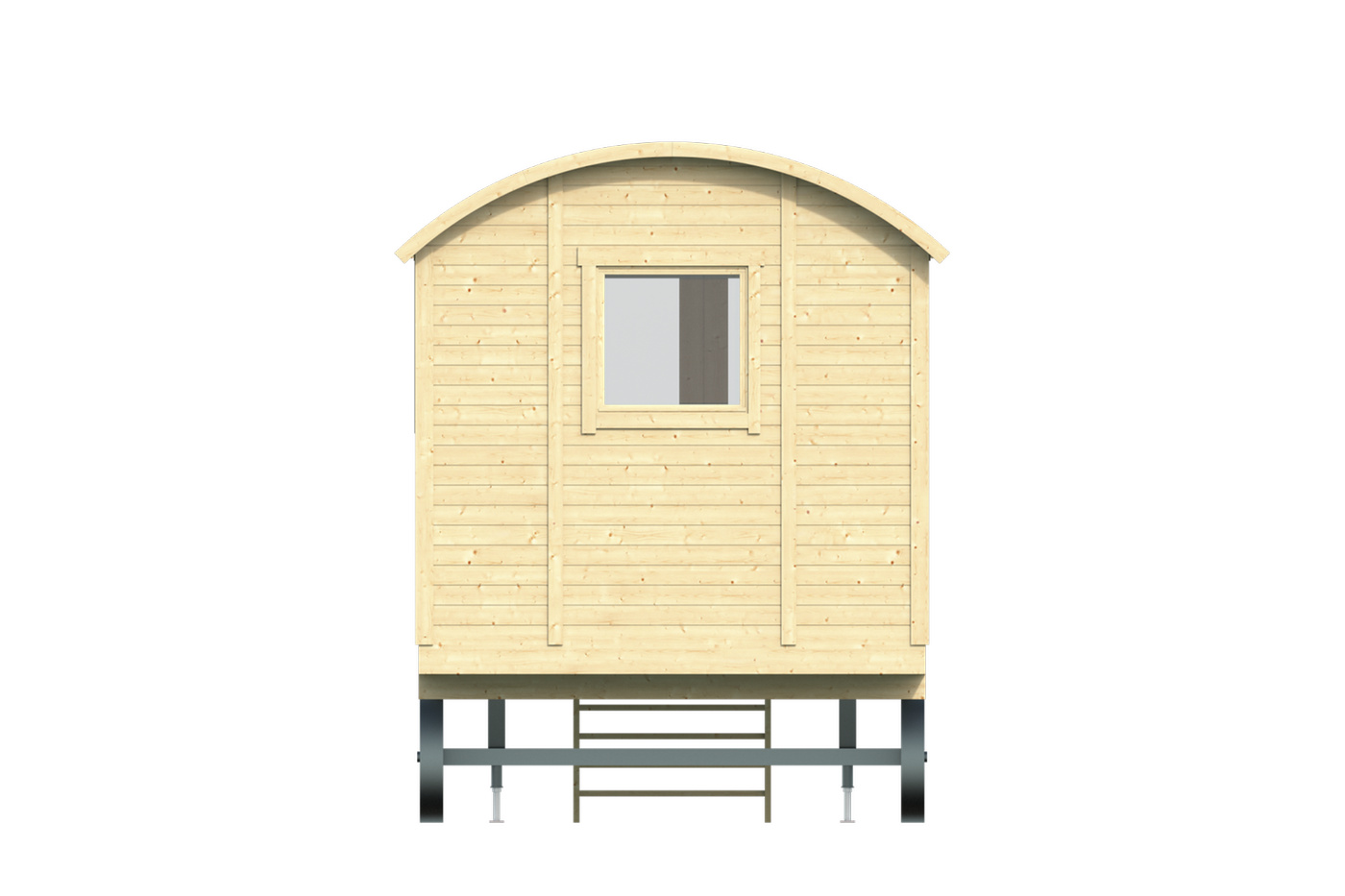

• One rear Tilt and Turn mechanism opening window

• Double opening porch gates - double action hinge for bi folding and ease of access. The spring can be tensioned as required by means of pins supplied.

• Access steps.

• Double door half glazed door.

• High quality window and door fittings.

• Torx screws as standard including torx bits.

• All Fittings, screws, components and instruction manual.

ALL is cut to size and is extremely precise with little or no tolerance.

Only for static use and props must be used all the time.

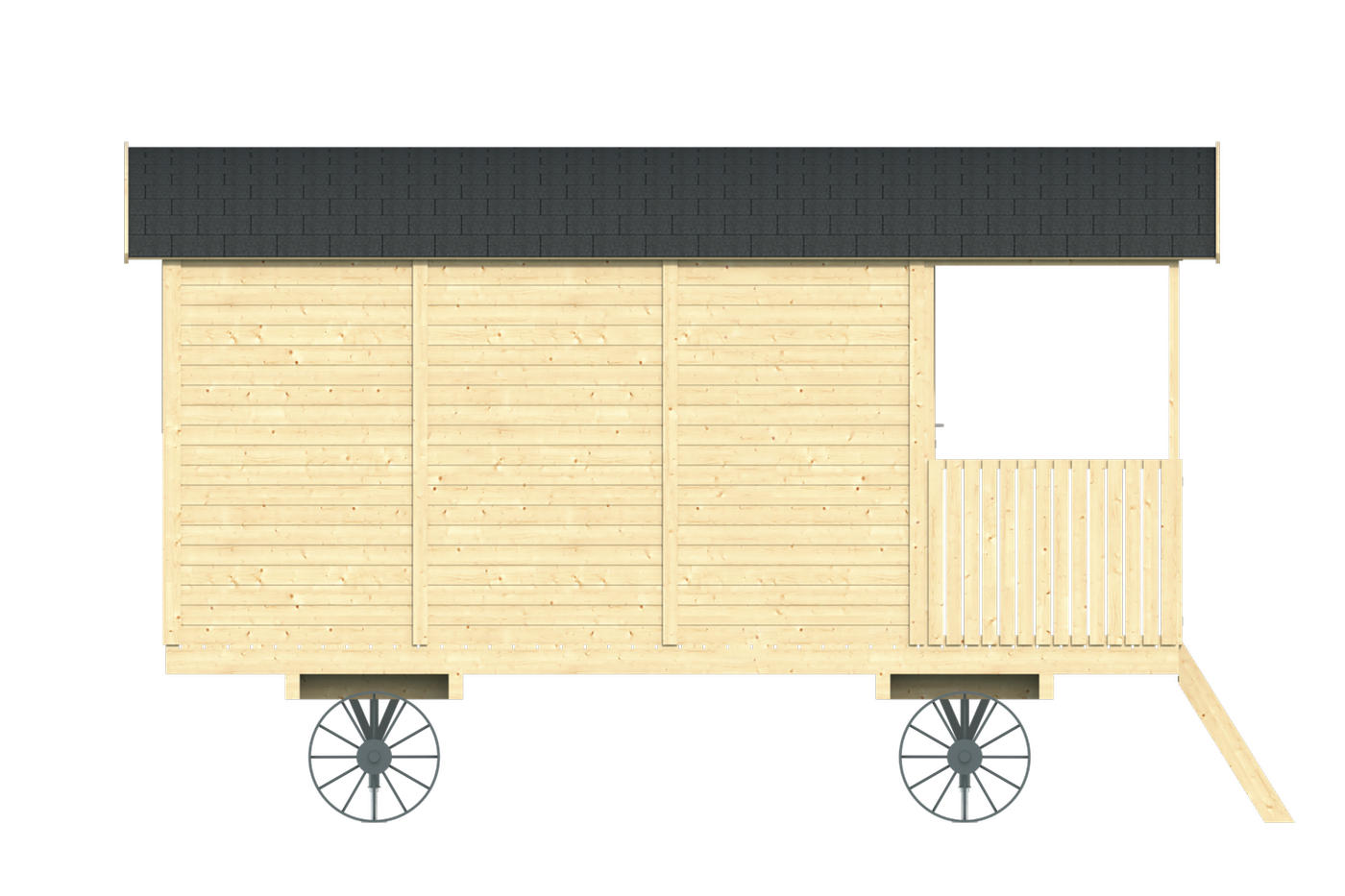

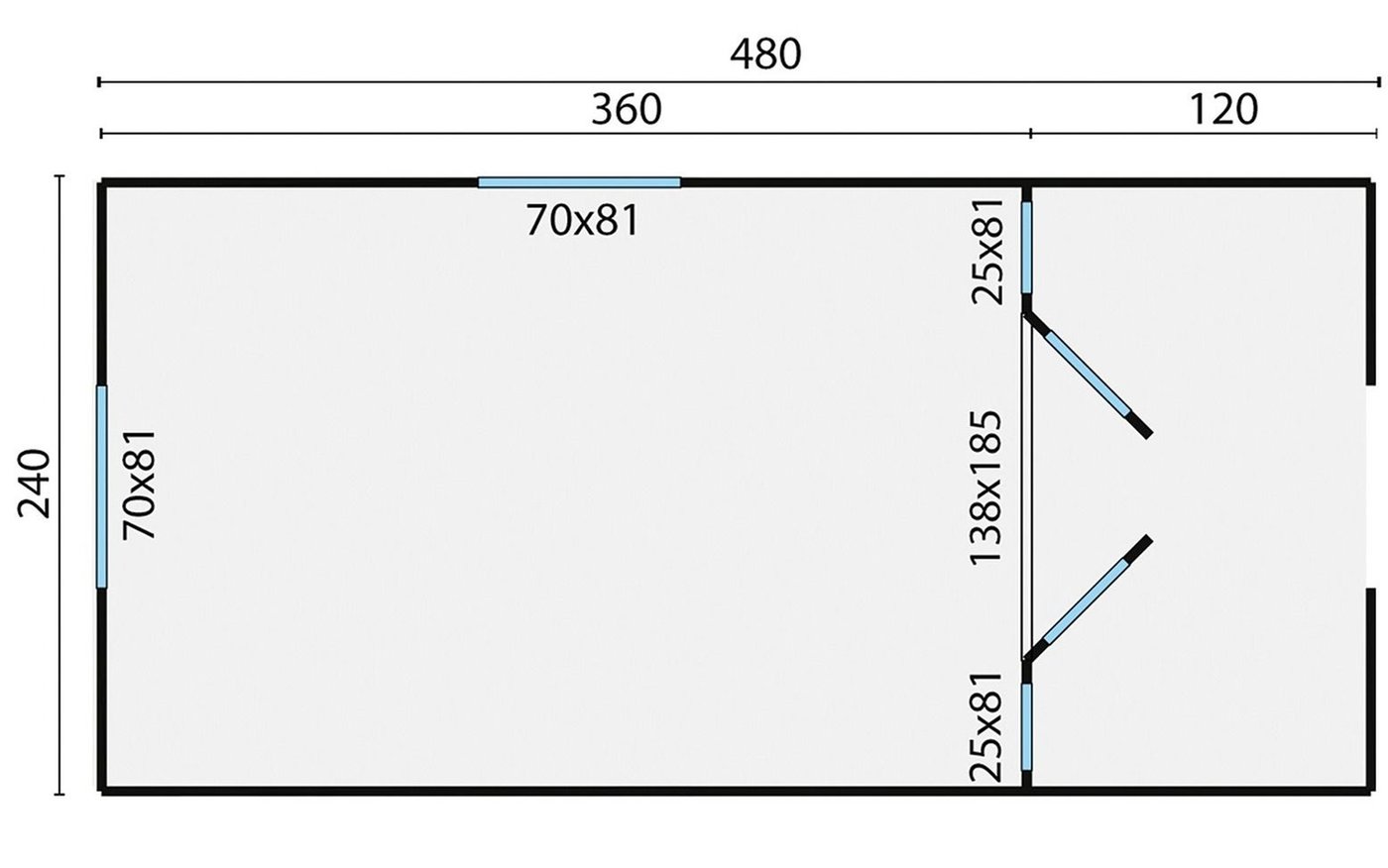

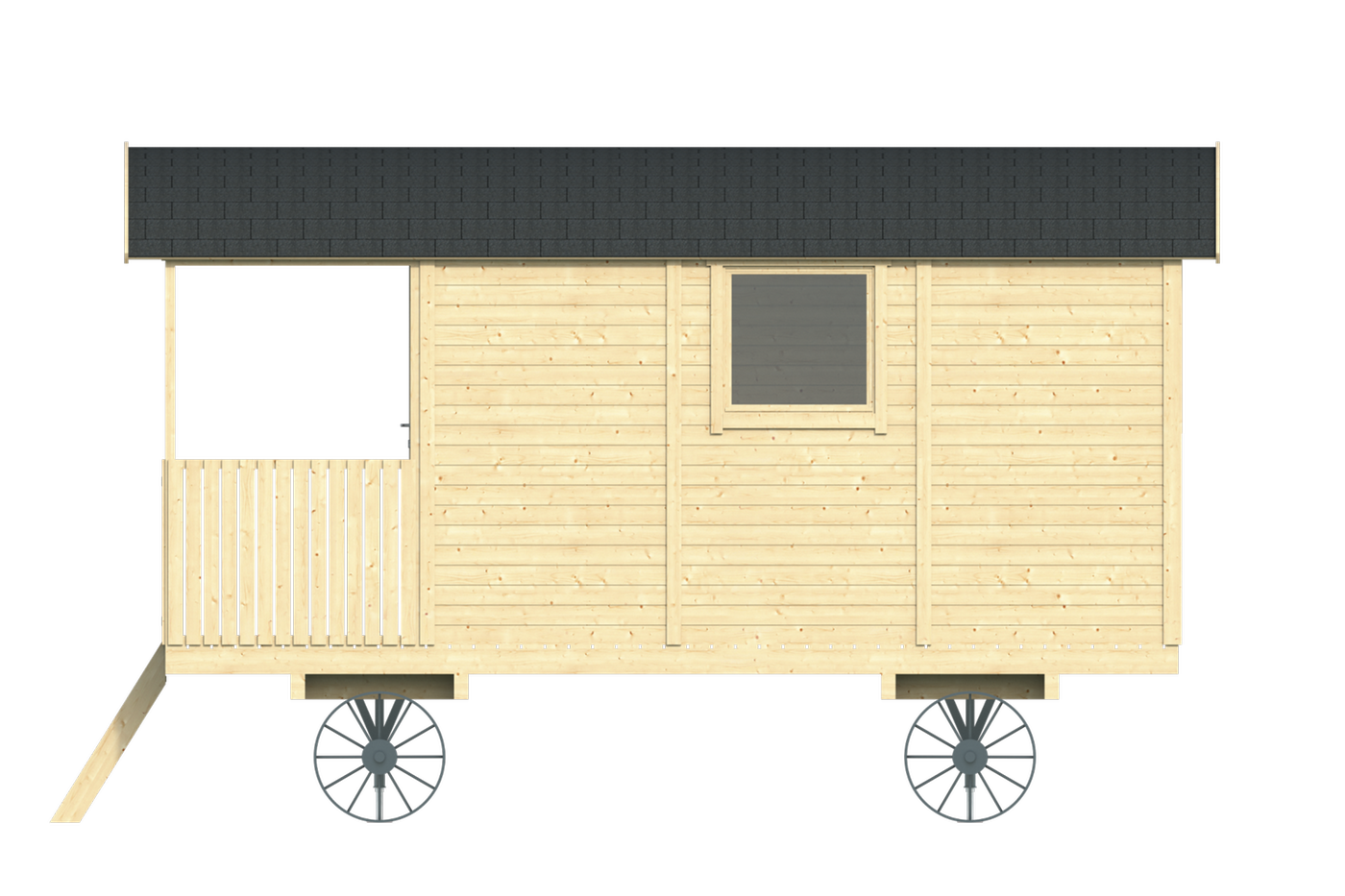

Dimensions of the Shepherd Hut - Gypsy Caravan:

• Overall Dimensions: 2.40 x 5.13m

• Wall Dimensions: 2.40 x 3.60m

• Ridge Height: 3.26m - (Height with wheels on)

• Eaves Height: 1.98m

• 19mm cladding - Untreated Spruce

• 19mm Roof and floor

• Roof overhang to the side: +-5cm

• Roof overhang front: +-16cm

• Roof overhang rear: +-16cm

• Center of supporting pins -2.812m x 184cm

• Diameter of wheels: +-650mm

• Height from Chassis to centre of the spindle of the wheels: +-325mm

• Wall Frame Depth: 45mm

Optional Extras:

• Supplied with standard roofing felt.

• Substantial painted Metal wheels, axles and supports

• Substantial Adjustable support legs for level positioning.

• Steel axles and frames are heavily bolted to the timber sub frame

• P013094 - Internal partition wall with door for Shepherd Hut- 138cm x 198cm

• P013100 - Deluxe stairs for Shepherd Hut with front entrance - 240cm x 231cm x 180cm

Notes:

Supplied untreated to enable you to finish to the standard you require with insulation, panelling, lining, painting etc.

If you require measurements to investigate the possibilities of a traditional tin roof:

• Width of curve: 2410mm

• Height: 400mm

Roof sheet of 3000mm will give 100mm overhang either side.

Different sizes of shepherd huts are also available
