Metal Roof Tiles Charcoal Screw

Metal Roof Tiles are a very viable alternative to felt tiles, these will last for at least twenty years, quick and easy to install and look like traditional tiles.

Suitable for Apex roofs only. These are NOT suitable for Flat or Pyramid roofs.

FEATURES OF OUR METAL ROOFING SHEETS:

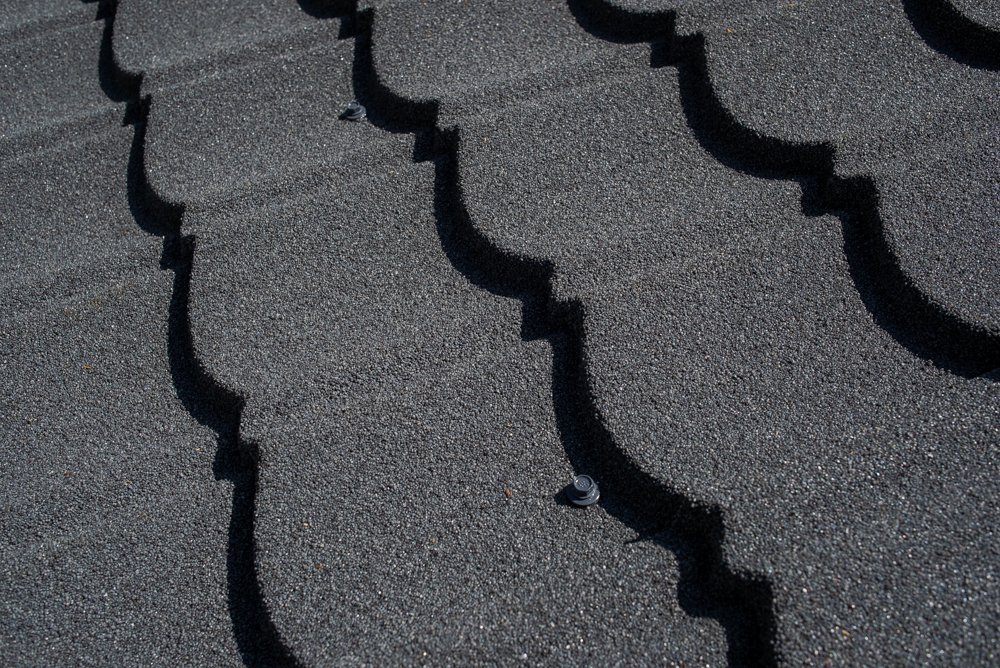

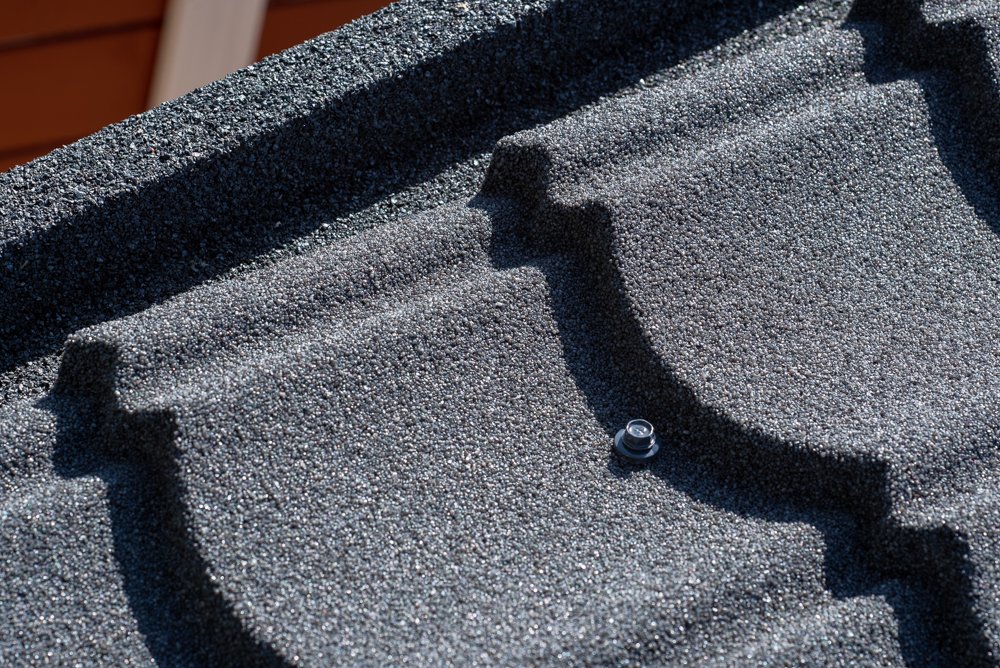

• Aluminium Roofing Panels with Zinc coating finished with stone granules.

• Fit 35 tiles at the same time

• Granulated, Rough Surface

• Always fit with no cutting required

• Old or new roof with a minimum pitch of 10 degrees

• Light, Strong and Durable

• Immediate Waterproofing

• Sound absorbing finish stone granules

• High resistance to aggressive atmospheric influences

• No need to a reinforced roof structure

• No waste

• Apply directly to old roofing without the need of removing it first.

• Two colours available - Red and Black

• Only suitable for Apex Roofs

These are universal roofing sheets and will fit any roof, not just our log cabins or Larch buildings. Each sheet contains five tiles in width and seven tiles in height. Tiles are overlapped without the need for cutting. Very fast and easy to install with no waste. These are NOT suitable for flat roofs

COMPONENTS:

• Metal Roof Sheets - 89cm x 118cm (0.86m.sq)

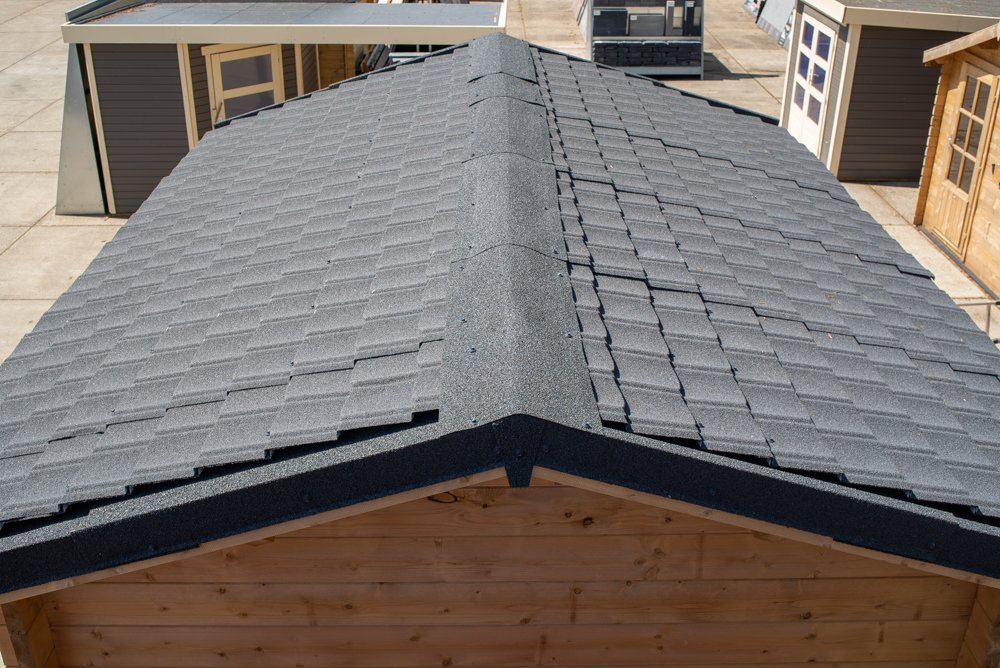

• Ridge Capping pieces 91cm (working length 81cm)

• End Caps for the Ridge

• Barge board Overlap 91cm (working length 81cm)

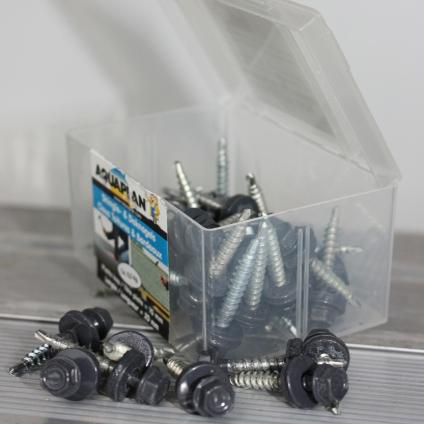

• Self tapping screws with EPDM seal. 40 Pieces per pack. (Six needed per sheet)

HOW MUCH DO YOU NEED?

Metal Roof Plates - calculate as follows:

• Measure the total width and length of the roof to find the area in meters and then divide by 0.86 - round up this figure for the number of metal roof panels needed.

Example:

• Roof boards are 2.37m in length

• Roof length is 4.25m

• 2.37 x 4.25 = 10.07

• To find the number of panels divide this by 0.86 (useable dimension of a panel)

• 10.07 / 0.86 = 11.70 - Therefore 12 panels are required

• Remember this is ONE side of the roof so the total building will need 24 metal roof panels for both sides.

METAL ROOF BARGE BOARDS CALCULATION:

• Roof boards length in meters and divide by 0.81. Round this up and multiply by four to account for all sides.

METAL RIDGE CAPPING CALCULATION:

• Measure the length of the ridge in meters and divide by 0.81. Round this up for the number required.

End Caps - Each roof will require two end caps for the ridge pieces.

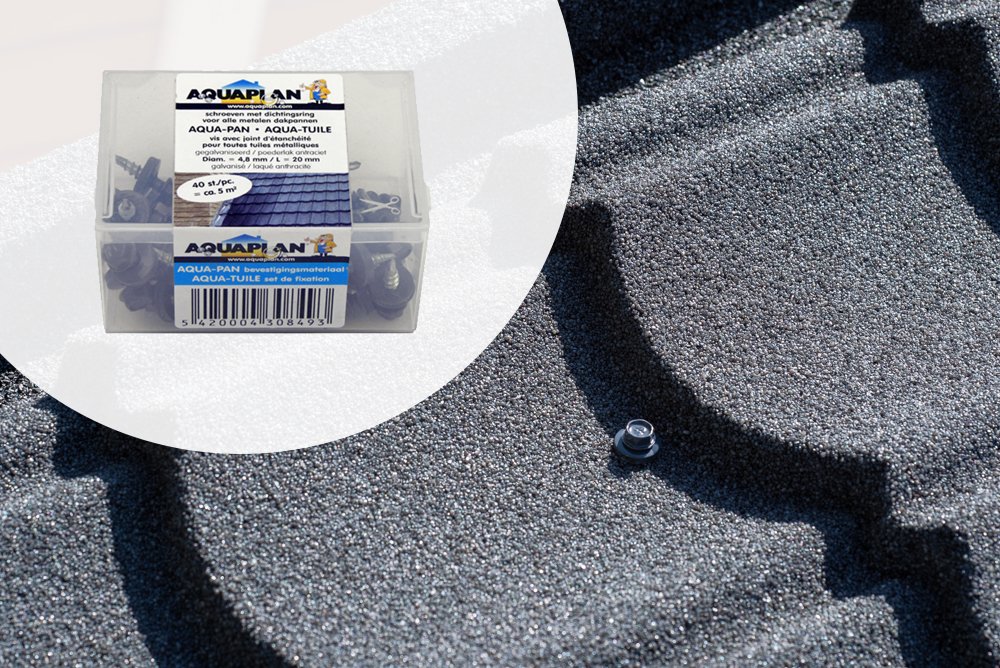

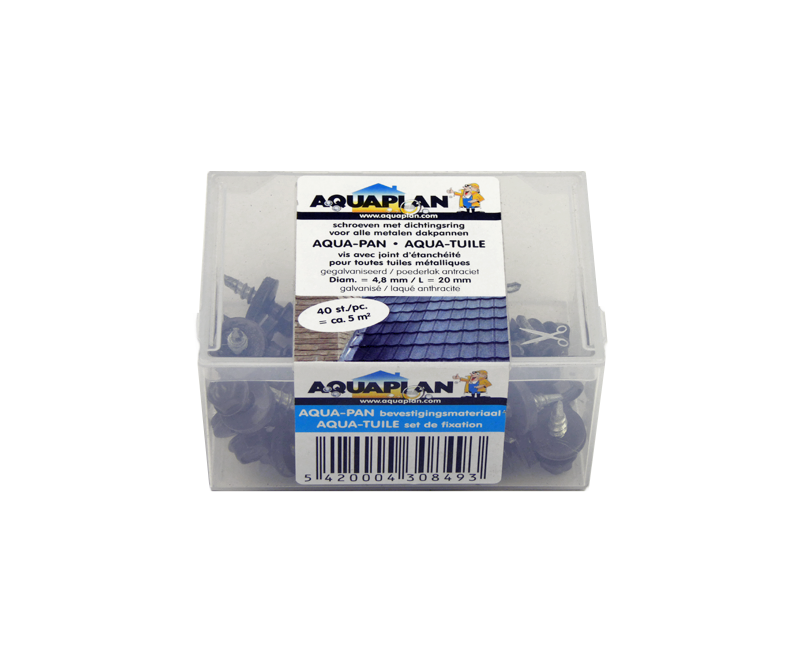

Screws: Each self tapping Screw pack contains 40 screws. Nine screws are required per plate including barge boards and ridge pieces. These screws are 20mm in length.

Please see this video on how easy installation can be. Roofing felt or Easy Roof Membrane is recommend to be applied below the metal roof tiles.
