Johnny Shepherd Hut 2.4m x 6.0m

Our Shepherd hut - Paddy Gypsy Wagon measuring in total 2.40m x 4.8m. A really large and imposing garden building. optional metal wheels, axles and H frame. A front porch double gate mounted on two way action sprung hinges and railings with ample room inside for a number of applications.

Most of our customers will add to this structure, lining it, insulating and producing a Garden office, Summerhouse and more. The pictures really do not do this building justice, it has to be seen to be appreciated.

Doors and windows are double glazed.

Use 35mm - 45mm Celotex (or similar) insulation in the walls and rockwool in the roof to create an office or accomodation. Line very cheaply with pine face plywood in the roof or 8mm pine cladding for the walls. Please also see the reviews as other customers who sell these as a business fully made also have some useful advice.

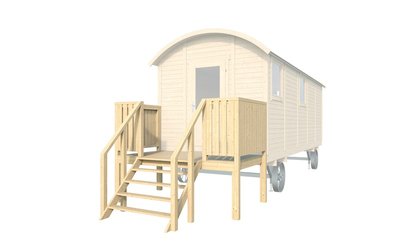

Our Shepherd Hut - Johnny Gypsy caravan measures a very large 2.40, x 4.80m overall. It is manufactured from 19mm tongue and grooved timber on a timber frame and metal chassis. A delightful front porch area is accessed via the steps and protected by the railings that surround it.

Supplied untreated, for finishing by yourself in a traditional opaque or solid colour.

• 19mm Tongue and Groove Cladding.

• Floor and Roof cladding has a rear groove to ensure it does not curl over time.

• Inner laminated and curved trusses

• Full fixed windows to the front

• Double Glazed

• Two Fixed side windows - Positions of the side windows can be moved as required.

• One rear Tilt and Turn mechanism opening window

• Double opening porch gates - double action hinge for bi folding and ease of access. The spring can be tensioned as required by means of pins supplied.

• Timber Subframe of a very heavy duty construction.


• Access steps.

• Double, half glazed door.

• High quality window and door fittings.

• Torx screws as standard including torx bits.

• All Fittings, screws, components and instruction manual.

• ALL is cut to size and is extremely precise with little or no tolerance.

• This product is actually hugely over engineered with metal brackets, 90 degree brackets and plates, all of which is unnecessary in the UK market but does display the massive quality you will receive on order as this is designed for Germany and Holland.

• Only for static use and props must be used all the time.

• Overall Dimensions: 2.40 x 6.33m

• Wall Dimensions: 2.40 x 4.80m

• Ridge Height: 3.26m - (Height with wheels on)

• Eaves Height: 1.98m

• 19mm cladding - Untreated Spruce

• 19mm Roof and floor

• Roof overhang to the side: +-5cm

• Roof overhang front: +-16cm

• Roof overhang rear: +-16cm

• Center of supporting pins - 281.2cm x 183cm

• Diameter of wheels: +-650mm

• Wall Panel Frame Depth: 45mm ( 40mm insulation is recommended )

Optional Extras:

• P013094 - Internal partition wall with door for Shepherd Hut- 138cm x 198cm

• P013100 - Deluxe stairs for Shepherd Hut with front entrance - 240cm x 231cm x 180cm

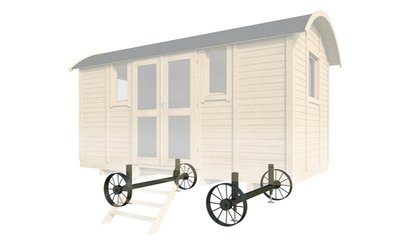

• Substantial painted Metal wheels, axles and supports


• Substantial Adjustable support legs for level positioning.

• Steel axles and frames are heavily bolted to the timber subframe

Notes:

Supplied untreated to enable you to finish to the standard you require with insulation, panelling, lining, painting etc.

• Width of curve: 2410mm

• Height: 400mm

• Roof sheet of 3000mm will give 100mm overhang either side.
